Textured PC Film for Thermoforming: Helmet, Toy & Packaging Applications

2026.07.06

Why Texture + PC for Thermoforming?

Most buyers default to smooth PC. But texture changes the game:

Fingerprint & scratch masking — matte/sandblast sides hide wear on helmet visors and toy shells
Lower gloss, better UX — instrument panels, premium packaging lids
Printability — sandblast surface anchors UV ink / silkscreen better than polished PC
Formability — PC softens ~180–220 °C, holds mold detail through vacuum / pressure forming

DAFU's Textured PC lets you mix surfaces: one side fine sand, the other matte or polished—or dual-texture, depending on whether you need a tactile exterior + printable interior.

Application 1 — Sports & Safety Helmets

Helmet shells and visor carriers live outdoors. They take UV, sweat, drops, and temperature swings.

Why DAFU textured PC fits:

High impact resistance (reference PC grade: Charpy notched ~85 kJ/m² @23 °C)
UV-stable options for outdoor ski / bike / motorcycle helmets
Dimensional stability after thermoforming → shell doesn't warp when bonded to EPS liner
Texture side as exterior = scratch-masking, matte look

Many helmet OEMs pair textured PC outer skin + EPS inner via twin-sheet or drape forming. DAFU widths up to 1400 mm cover most adult helmet blank sizes without splicing.

Application 2 — Toys & Children's Products

This is where compliance sells the material, not just性能.

If you're exporting toy packaging or rigid toy shells to the US, two checkpoints matter:

CPC / ASTM F963-23 — for toy packagingplastic bags with opening > 356 mm (14″), average film thickness must be ≥ 0.038 mm (1.5 mil); thinner = must perforate ≥1% area + choking warning
Material safety — DAFU PC films are REACH / ROHS / UL compliant; food-contact grades available (FDA-type clearance on comparable PC grades)

Where textured PC goes in toys:

Rigid toy shells (building blocks, action-figure armor) — impact + printability
Premium gift-box windows — matte PC replaces PVC (more heat-stable, no plasticizer migration)
Reusable children's container lids — FDA-capable grades

If your toy packageuses a PC window bag, specify ≥0.04 mm to stay safely above ASTM F963-23's 0.038 mm line.

Application 3 — Premium Packaging Boxes & Display

PC beats PET here on heat resistance and drop impact, especially for:

Electronics / cosmetics rigid box windows (matte PC = luxury haptics)
Reusable gift tins / sliding-lid inserts
Retail display trays that go through heat-shrink or hot-stamp post-processing

Thickness range 0.05–1.5 mm covers everything from ultra-thin window film to rigid insert blanks. Widths 915–1400 mm let you nest multiple cavities per roll and cut die-cost.

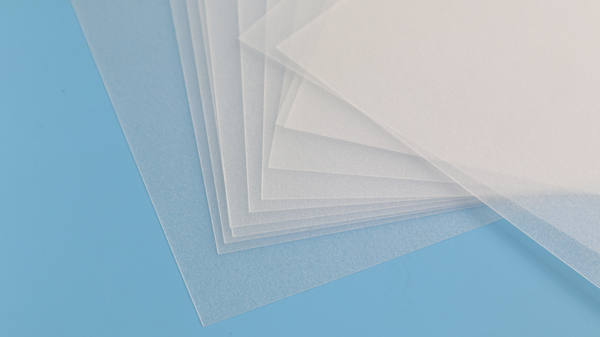

Quick Spec Snapshot (DAFU Textured PC Series)

Property	Value / Range
Material	Polycarbonate (PC)
Thickness	0.05 – 4.0 mm (custom)
Width	≤ 1400 mm
Surface	Fine / medium / coarse sand; one-side or dual-texture; reverse can be matte or polished
Colors	Custom-matched
Certifications	ISO9001, ISO14001, SGS, MSDS, REACH, ROHS, UL
Typical forming temp	180–220 °C (softening); pre-dry 110–120 °C 6–8 h

DAFU is a GB/T 35450-2017 (China Polycarbonate Film & Sheet National Standard) key drafting unit—the same spec discipline carries into export rolls.

FAQ

Q: Can I get flame-retardant (FR) textured PC?

A: Yes—FR grades available on request (UL94-classed comparable PC grades); confirm rating per thickness with DAFU export team.

Q: Minimum order?

A: 1 ton MOQ, roll or sheet cut-to-size, free slitting available.

Q: Lead time for custom color + texture?

A: Typically 2–3 weeks including color masterbatch matching; provide Pantone or physical sample.
